Audison Prima AP 690 6 x 9 Woofer


6 X 9 Woofer

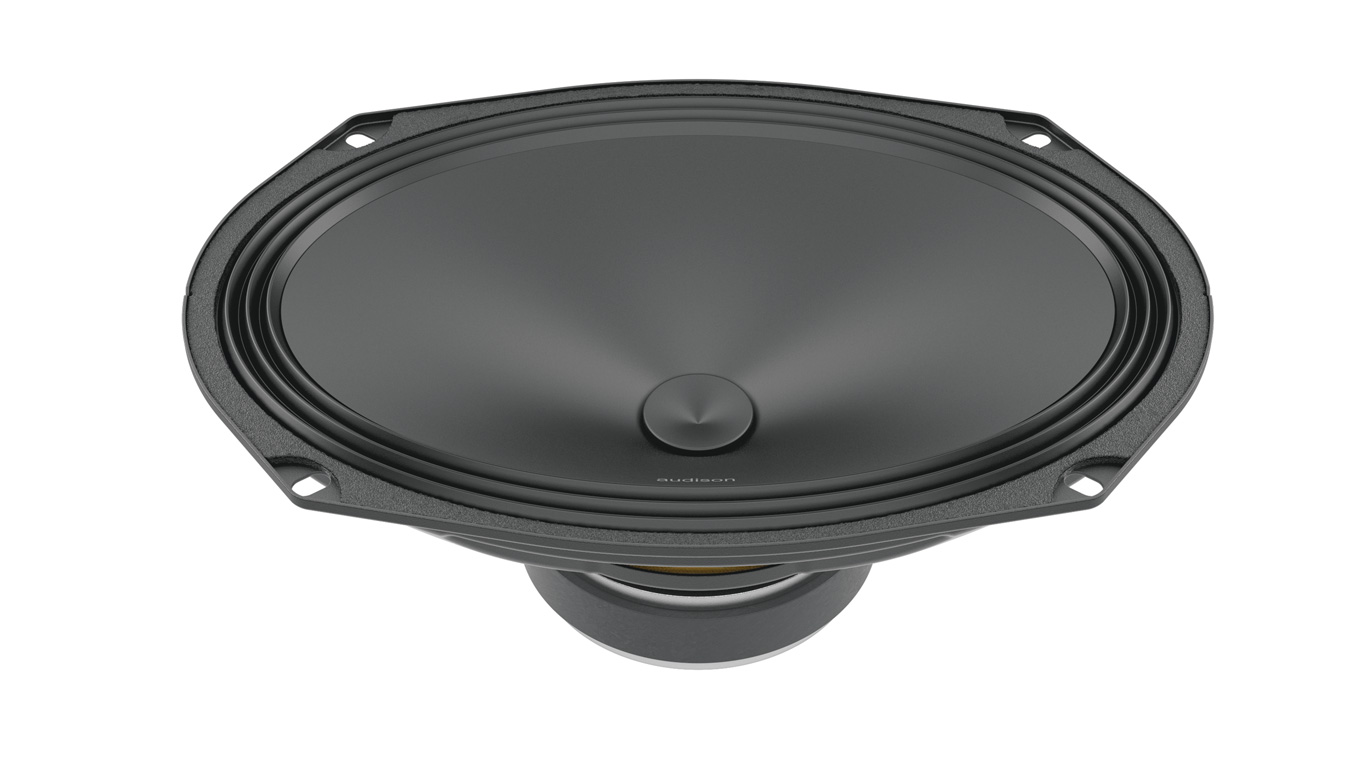

Audison Prima AP 690

Following the design criteria of the rest of the Prima range, this 6 X 9 woofer is optimised for use in door panels. The ability to add a tweeter to it to create a 2-way system negates many of the imaging problems associated with running coaxial speakers in car doors.

An innovative dust cap provides mechanical cut off resulting in a woofer that requires no filtering and can be run directly form a full range amplifier

» Size: 6 x 9 in.
» Power Handling: 100 W Continuous, 300 W Peak
» Impedance: 4 ohms
» Frequency Response: 40 – 5k Hz
» Sensitivity: 95 dB/Spl
» Magnet: High density flux ferrite
» Dome: Water-repellent treated paper cone
