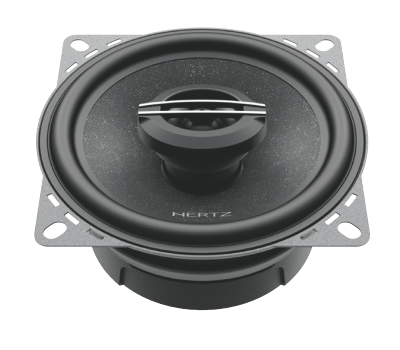

Hertz Cento CX 100
Coaxial speakers present designers with the toughest technical challenge due to often poor mounting positions in the vehicle. As the 24mm tweeter sits inside the cone area of the woofer, it is imperative that a wide dispersion characteristic is achieved. In this case, the contoured tweeter bezel can be rotated and angled towards the listeners ears.
» Power Handling – Peak W120
» Power Handling – Continuous W40
» Impedance 4 Ohm
» Frequency response Hz 80 � 22k
» Sensitivity dB SPL 92
» Woofer size mm (in.) 100 (4)
» Tweeter size mm (in.) 24 (0.9)
» Woofer Voice Coil � mm (in.) 25 (1)
» Tweeter voice coil � mm (in.) 13 (0.5)
» Woofer magnet High density flux ferrite
» Tweeter magnet Neodymium
» Woofer cone Semi-pressed paper + Mica
» Tweeter dome Tetolon�
