Description
6-Channel DSP Amplifier, Speakers & Subwoofer System for Volkswagen T6.1 for original Volkswagen radios
SPC-W84AT6-2 – SPC-106T61-2
Alpine Adventure Audio – Your journey to a new sound experience
Upgrade your Alpine Adventure Audio speaker system for Volkswagen T6.1 to the Concert Ensemble with the new SPC-W84AT6-2 6-Channel DSP amplifier PDA-S560 and subwoofer system.
This sound upgrade will add lots of power output, dynamic and bass to your existing Alpine speaker system to achieve the ultimate listening experience in your vehicle.
The DSP amplifier is pre-programmed to perfectly match the sound characteristics of the Volkswagen T6.1, to ensure perfect sound quality, while the included wiring harness for original Volkswagen radios or aftermarket radios featuring RCA pre-amp outputs allows for fast plug-and-play installation in your vehicle.
The included 180 Watt subwoofer with wooden enclosure for installation under the passenger seat adds powerful bass and is even compatible with the rotary seat of the California camping bus.
Enjoy the second generation of Alpine Status sound systems with an even more powerful amplifier.
More Power, More Dynamic
The 1120 Watt (peak power) Alpine DSP amplifier ads much more power and dynamic to your entire sound system and additionally drives the included 180 Watt dual-coil subwoofer. The DSP amplifier is pre-programmed to perfectly match the sound characteristics of the Volkswagen T6.1 cabin, but can be further adjusted for steering wheel configurations (left or right), radio type and other factors.
Your VW T6.1 never sounded that good
Bring high-fidelity audio to your Volkswagen T6.1 at an affordable cost with the Alpine SPC-106T61 Adventure Audio speaker system. From deep, rich bass to accurate mids and crisp, clean highs – you will hear every note with a new sense of clarity. The speaker system handles up to 180 Watts peak power and provides an audiophile listening experience.
Powerful Bass Upgrade
Enjoy strong, powerful bass with the included 180 Watt subwoofer to make all your audio tracks sound even more exciting. The dual-coil subwoofer comes pre-installed in a sealed wooden enclosure, installed under the passenger’s seat of your T6.1. It is also compatible with the rotary seats of the California version, as well as the seating bench of the Caravelle van (installation position for Caravelle with 2-person bench is under the driver’s seat).
Fast & easy installation
All required installation brackets and cable harnesses are included in the SPC-W84AT6-2 kit to enable a smooth and easy installation. This version includes a plug-and-play wiring harness to connect the sound system to an original Volkswagen T6.1 radio or aftermarket radios featuring RCA pre-amp outputs.
The second generation of the SPC-106T61 has been upgraded with several technical improvements to deliver an even more impressive sound experience. The new High-Amplitude Multi-Roll (H.A.M.R.) surround allows for greater cone excursion, resulting in more precise bass reproduction. Additionally, the vented pole structure enhances motor cooling by efficiently dissipating warm air. This enables the speaker to handle higher power levels for extended periods without sound degradation.
The gold-plated blade terminals ensure optimal signal transmission and corrosion resistance, while the die-cast aluminium basket provides high rigidity and allows for larger magnets without warping. This enhancement enabled us to equip the speakers with more powerful magnets while maintaining the same mounting depth. As a result, the SPC-106T61-2 delivers deeper bass, higher power handling, and increased component longevity.
This Alpine Adventure Audio system for the Volkswagen T6.1 perfectly unites function with form: enjoy audiophile grade sound quality, while the beautiful photo-etched stainless-steel tweeter grills simply look stunning in your A-pillars.
The High-end tweeters let you hear every note with stunning clarity and fast dynamics, while the 16.5 cm mid-range door speakers produce a wide frequency range that uncovers the rich details of every audio track – delivering your favorite songs with powerful mid-bass and amazing texture and accuracy
Due to the original VW connectors and usage of the original wiring harness, installation is fast and easy. The system is also compatible with the front windscreen roller blinds in the VW T6.1 California and can be further upgraded to the Concert Ensemble with a powerful 300 Watts subwoofer and a 6-channel DSP amplifier.
Mid-Range Woofer:
- 166 mm mid-range door speaker
- Die-Cast Aluminum Basket
- High-Amplitude Multi-Roll (H.A.M.R.) Surround
- 25 mm voice coil
- Large Ferrite magnet
- Vented Pole Structure
- Gold plated blade terminals
- Includes foam seal ring
- For easy installation with original VW cable harness (original connectors)
Tweeter:
- 28 mm audiophile-grade back-chambered silk-dome tweeters
- Neodymium magnet
- Stainless steel tweeter grills (photo etched)
- Acoustically optimized tweeter installation brackets
- Integrate speaker network with foil condenser
Specifications:
- Peak Power Handling: 150 W
- RMS Power Handling: 100 W
General:
- Frequency response: 40 Hz – 25 kHz
- Impedance: 4 Ω
- Sensitivity: 89.2 dB 1 W / m
Compatibility
- Volkswagen T6.1 California 2019 →
- Volkswagen T6.1 Multivan 2019 →
- Volkswagen T6.1 Transporter 2019 →
- Volkswagen T6.1 Caravelle 2019 →
Compatible with rotary seats and 2 person front bench. Wiring harness designed for connection to original VW radio systems (high power input) or aftermarket radios featuring RCA pre-amp outputs.

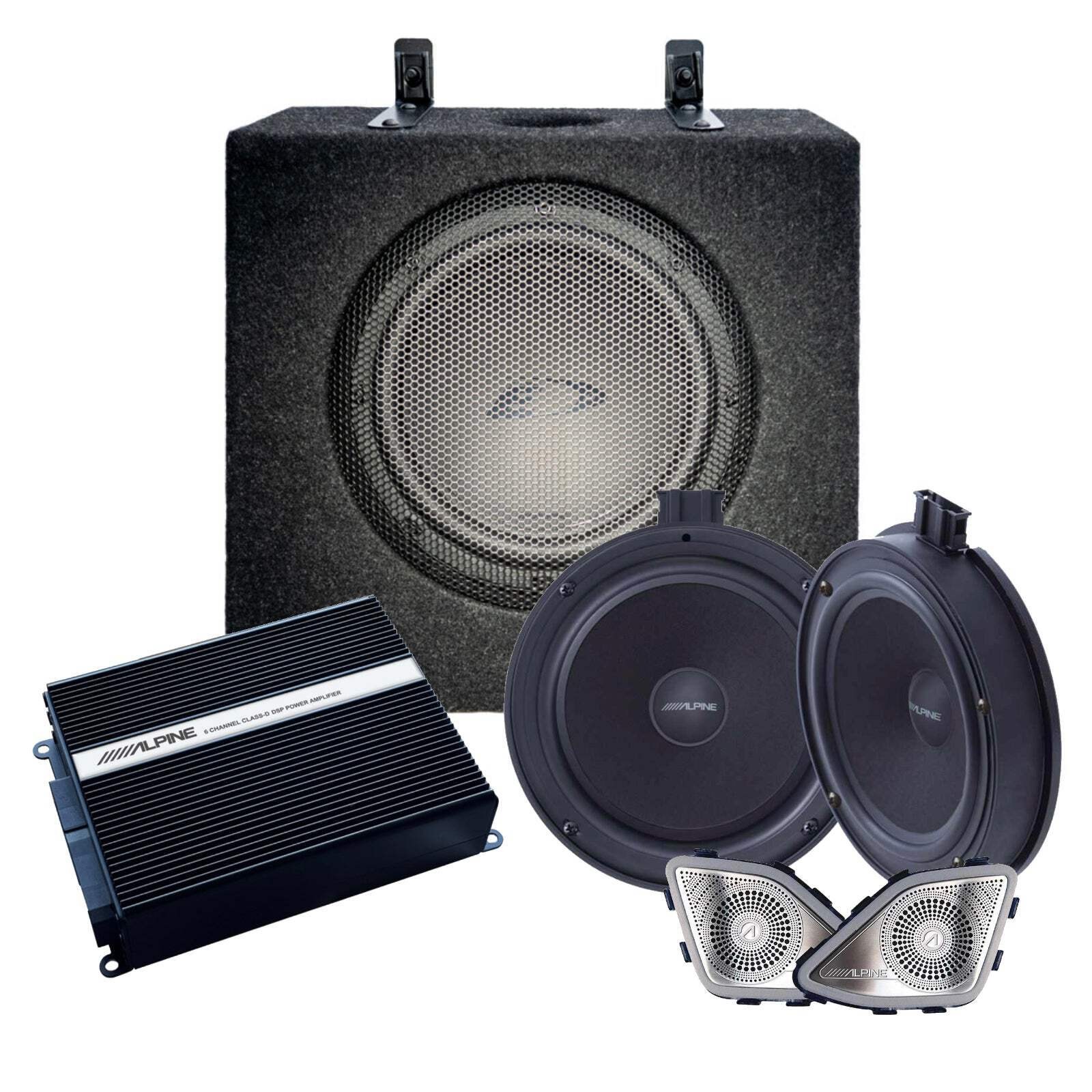

Whats Included:
- SPC-W84AT6-2
- Included subwoofer grill
- Installation brackets
- Wiring Kit
- 6 Channel DSP Amplifier
- SPC-106T61
- Includes foam seal ring
- Includes steel plates for solid door installation
